Ship optical cable interfaces, dubbed the “bridge and hub” of communication networks, are vital in modern maritime and offshore communication systems. Ship optical cables serve as the core neural network for information transmission, and their efficient operation heavily relies on precise connections and reliable interfaces. These interfaces connect optical cables to various communication devices and systems, ensuring smooth signal transmission and efficient conversion.
Let’s delve into the mysteries of ship optical cable interfaces.
1. The Significance of Ship Optical Cable Interfaces
Ship optical cable interfaces are essential components that establish physical connections and signal transmission between optical cables and external communication devices. In the complex communication networks of ships, these interfaces must ensure the efficient transmission of optical signals while withstanding harsh marine conditions such as high humidity, salt spray corrosion, and vibration shocks. A well-designed and reliable optical cable interface can significantly enhance the stability, reliability, and transmission efficiency of communication systems, reduce signal loss and fault risks, and guarantee the normal operation of ship communication systems.
As ship communication technology continues to evolve, the importance of ship optical cable interfaces becomes increasingly prominent. Whether it’s for ship local area networks, satellite communications, shore – based communications, or data acquisition and transmission in offshore engineering, high – quality optical cable interfaces are indispensable. They are the throat of communication networks; any issues can directly affect the functionality of the entire communication system and even jeopardize ship navigation safety.
2. Types and Characteristics of Ship Optical Cable Interfaces
2.1 Fiber Optic Connector Interfaces

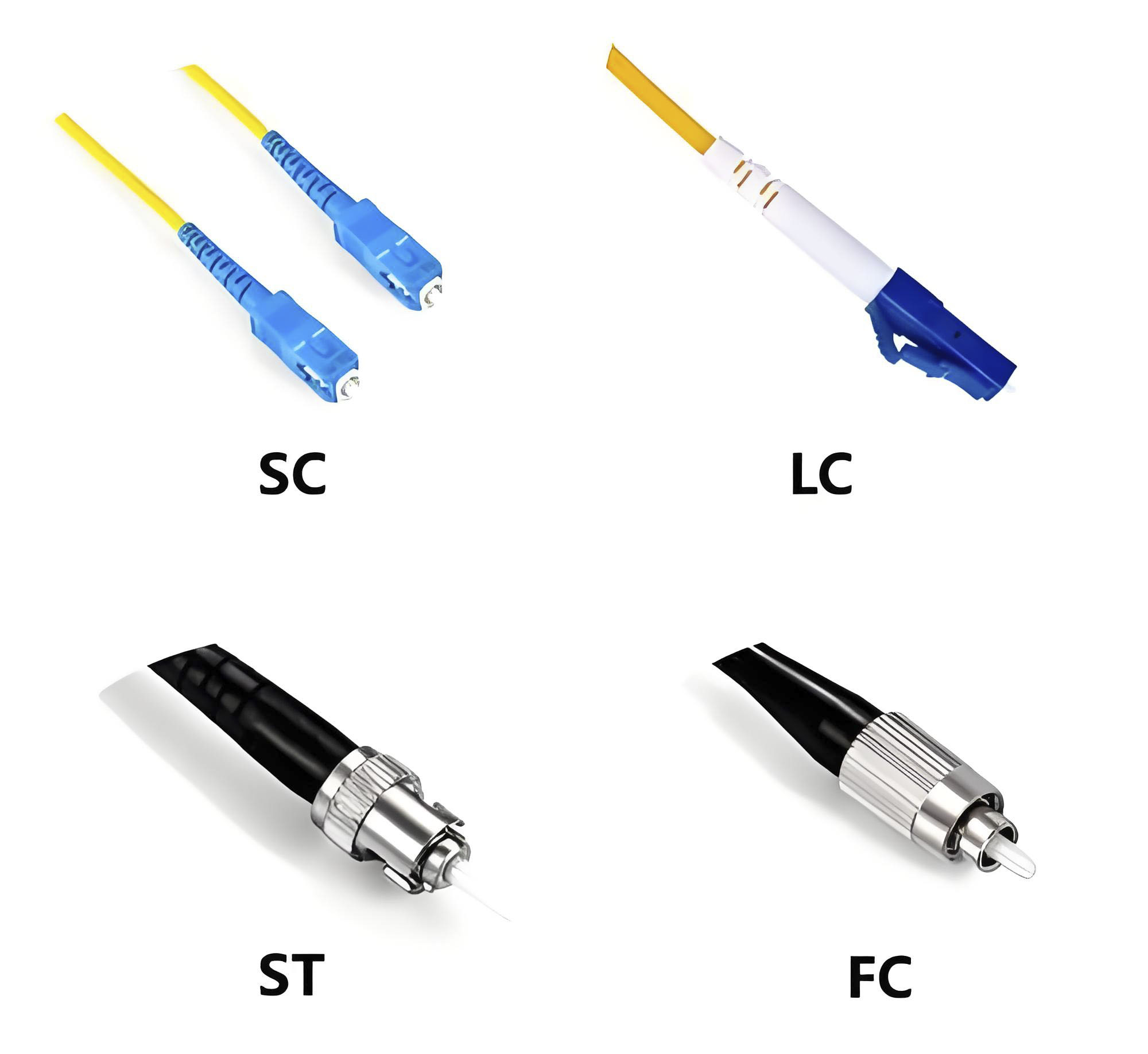

Fiber optic connector interfaces enable direct connections between ship optical cables and communication equipment. Through high – precision mechanical designs, they precisely align the fiber cores of the optical cable with those of the equipment, ensuring efficient optical signal transmission. There are various types of fiber optic connector interfaces, such as FC, SC, LC, and ST, each with distinct structures, sizes, and connection methods, making them suitable for different application scenarios.
- FC (Ferrule Connector) Interface: The FC interface is a threaded circular connector that connects via rotation and tightening. It features robustness and high stability, making it suitable for applications requiring reliable connections, such as ship navigation systems and communication base stations. The plug part of the FC interface is typically made of ceramic or metal, enabling it to withstand significant mechanical stress, ensuring precise fiber core alignment, and minimizing optical signal reflection and loss.
- SC (Subscriber Connector) Interface: The SC interface is a rectangular connector that uses a plug – and – play connection method. It is simple and quick to operate, has good interchangeability and universality, and is widely used for connecting ship local area network devices such as switches, routers, and terminal equipment. Its structural design effectively protects the fiber core during plug – and – play operations, preventing fiber damage caused by improper handling. The larger contact area also helps improve signal transmission stability.
- LC (Lucent Connector) Interface: The LC interface is a miniaturized rectangular connector, about half the size of the SC interface. It also uses a plug – and – play connection method and features a small size and high density, making it suitable for equipment connections in space – constrained environments, such as ship communication control modules and sensor interfaces. The LC interface has high fiber core alignment accuracy, supports high – speed and large – capacity optical signal transmission, and meets the high – bandwidth demands of modern ship communication systems.
- ST (Straight – tip Connector) Interface: The ST interface is a circular connector with a bayonet, allowing for quick connection and disconnection via rotating the bayonet. It is characterized by flexible connections and convenient operation and is often used for temporary communication equipment connections and test equipment interfaces on ships. Its structural design enables it to maintain good connection performance even with frequent plug – and – play operations. The bayonet design also effectively prevents connection loosening, ensuring stable signal transmission.

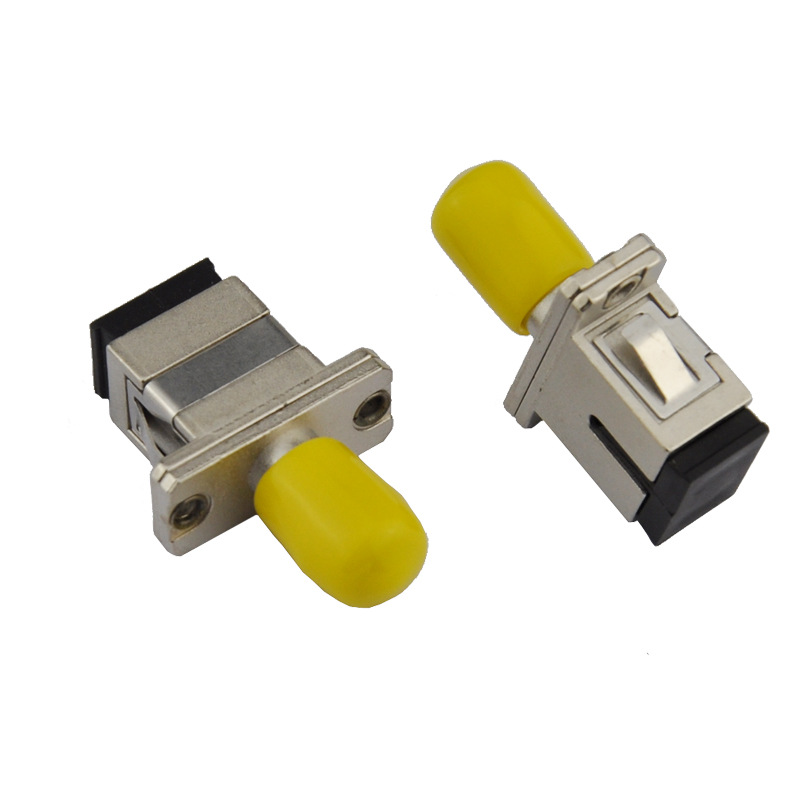

2.2 Optical Cable Adapter Interfaces
Optical cable adapter interfaces are conversion devices used to connect different types of fiber optic connectors. In ship communication systems, different devices may use various fiber optic connectors, and the optical cable adapter interfaces provide flexible and diverse connections between optical cables and devices. Through adapter interfaces, connections between different types of connectors, such as FC and SC, SC and LC, and LC and ST, can be achieved, meeting the complex and changing connection requirements of ship communication systems.
The design of optical cable adapter interfaces fully considers connection reliability and signal transmission integrity. Their internal structures are precision – machined to ensure precise fiber core alignment during the conversion process, reducing signal loss and reflection. The adapter interface housing is made of high – strength, corrosion – resistant materials, enabling it to withstand various harsh marine conditions and ensuring long – term stability and reliability. In locations such as ship communication equipment rooms and navigation control stations, optical cable adapter interfaces are often installed on equipment panels or wiring boxes, providing a convenient conversion channel for connections between optical cables and devices, thereby enhancing the flexibility and expandability of communication systems.
2.3 Optical Cable Coupler Interfaces
Optical cable coupler interfaces are device interfaces used to distribute optical signals from one optical cable to multiple optical cables. In ship communication systems, when it is necessary to distribute signals from a main optical cable to multiple branch optical cables or to combine signals from multiple optical cables into a main optical cable, optical cable coupler interfaces play a crucial role. Through special optical designs, they enable efficient signal distribution and coupling.
Optical cable coupler interfaces come in various types and forms, such as T – type, star – type, and tree – type couplers. T – type couplers can distribute signals from one optical cable to two branch optical cables or combine signals from two optical cables into one main optical cable. Star – type couplers can achieve signal distribution and coupling among multiple optical cables and are suitable for multi – point communication networks within ships. Tree – type couplers can realize multi – level signal distribution and are suitable for complex communication architectures on large ships or offshore engineering platforms.
The design of optical cable coupler interfaces takes into account both signal distribution uniformity and efficiency, as well as interface reliability and stability. Their internal structures utilize high – precision optical components and precision machining processes to ensure low – loss and high – fidelity optical signal transmission during distribution and coupling. The housing design also considers the marine environment, featuring excellent waterproof, dust – proof, and corrosion – resistant properties to ensure stable long – term operation.
2.4 Optical Cable Flange Interfaces
Optical cable flange interfaces are fixed device interfaces used for optical cable termination connections. They securely connect optical cables to equipment ports using bolts or clips, ensuring that optical cables do not loosen or fall off during operation due to vibration, impact, or other external forces. This guarantees the stability and reliability of communication systems.
The internal structure of optical cable flange interfaces typically uses high – precision fiber optic adapters and connection modules to ensure precise fiber core alignment and efficient signal transmission. The housing is made of high – strength, corrosion – resistant materials capable of withstanding significant mechanical stress and harsh environmental conditions. In key locations such as ship communication equipment rooms and navigation control stations, optical cable flange interfaces are often installed on equipment panels or wiring boxes, providing reliable fixed points for permanent optical cable connections. Through flange interfaces, optical cables can achieve stable connections with communication equipment such as switches, routers, and servers, ensuring long – term stable signal transmission.
3. Performance Requirements of Ship Optical Cable Interfaces
3.1 High Reliability
Ship communication systems operate in marine environments with harsh conditions such as high humidity, salt spray corrosion, and vibration shocks. Therefore, ship optical cable interfaces must be highly reliable. The materials used need to have good corrosion – resistance and aging – resistance to maintain stability over the long term in marine environments. The mechanical structure design should be able to withstand significant mechanical stress to prevent connection loosening or damage during ship operations. Additionally, interfaces need to have good sealing performance to prevent moisture, dust, and other impurities from entering and affecting signal transmission quality.
3.2 Low Loss
The performance of optical cable interfaces directly affects optical signal transmission efficiency. Factors such as fiber core alignment accuracy, connector end – face quality, and adapter optical performance in ship optical cable interfaces can all influence signal loss. Thus, ship optical cable interfaces need to have low – loss characteristics to ensure the integrity of optical signals during transmission. Using high – precision manufacturing processes and high – quality optical materials can effectively reduce reflection loss, insertion loss, and other issues at the interface, improving optical signal transmission efficiency and meeting the high – bandwidth and low – latency requirements of ship communication systems.
3.3 High Interchangeability
To enhance the maintenance efficiency and equipment universality of ship communication systems, ship optical cable interfaces need to have high interchangeability. This requires strict adherence to international standards and industry norms during the design and manufacturing processes of ship optical cable interfaces, ensuring consistency in dimensions, shape, and connection methods. Furthermore, the electrical and optical performance of interfaces also needs to meet certain standards to guarantee stable signal transmission performance when interchanged between different devices.
3.4 Anti – Electromagnetic Interference
In the complex electromagnetic environment of ships, communication systems are prone to electromagnetic interference, leading to unstable signal transmission or bit error issues. Therefore, ship optical cable interfaces need to have good anti – electromagnetic interference performance. By using shielding materials and special structural designs, electromagnetic radiation and induction at the interface can be effectively reduced, minimizing the impact of electromagnetic interference on optical signal transmission. Additionally, the grounding design of interfaces is crucial as it can direct induced electromagnetic interference signals into the ground through grounding devices, further enhancing the anti – electromagnetic interference capability of interfaces and ensuring the stable operation of communication systems.
4. Future Development of Ship Optical Cable Interfaces
With the continuous advancement of ship communication technologies and the growing complexity of offshore projects, ship optical cable interfaces need to be constantly improved to meet higher performance requirements and more complex application scenarios.
4.1 Intelligence
Ship optical cable interfaces should develop in an intelligent direction. Intelligent interfaces equipped with sensors and microprocessors can monitor in real – time key information such as connection status, signal transmission quality, and environmental parameters. Based on the data collected by these sensors, interfaces can automatically determine whether connections are normal and whether there are issues such as abnormal signal loss or excessive fiber bending. They can also promptly transmit relevant information to the ship’s monitoring system, achieving real – time monitoring of communication systems and fault early warning.
4.2 Advanced Materials and Manufacturing Processes
The use of more advanced materials and manufacturing processes is necessary to adapt to harsher marine environments and meet higher communication performance requirements. In terms of materials, developing novel materials with higher strength, better corrosion – resistance, and lower signal loss for manufacturing the housing and internal structures of optical cable interfaces is crucial. For example, optical cable interfaces made from carbon fiber composite materials not only feature high strength and lightweight properties but can also effectively resist seawater corrosion and ultraviolet radiation, extending the service life of interfaces. Regarding manufacturing processes, introducing advanced technologies such as precision machining and nano – manufacturing can improve the manufacturing accuracy and quality of interfaces. Precision machining can produce more refined fiber connection modules and couplers, reducing signal loss during connection and distribution. Nano – manufacturing technology can apply a special nano – coating on the interface surface, enhancing its anti – electromagnetic interference and optical performance.
The combination of high – performance materials and advanced manufacturing processes can significantly improve the performance and reliability of ship optical cable interfaces, providing strong support for the development of ship communication systems.
4.3 Miniaturization and Integration
As ship communication systems continue to upgrade and increase in complexity, there are higher requirements for the size and weight of optical cable interfaces. Ship optical cable interfaces will develop towards miniaturization and integration. By optimizing design and using advanced micro – and nano – manufacturing technologies, optical cable interfaces can become smaller, lighter, more integrated, and more powerful.
5. Conclusion
Although small, ship optical cable interfaces play a crucial role. From the precise alignment of fiber optic connectors to the diverse connections of optical cable adapters, from the signal distribution of optical cable couplers to the stable fixation of optical cable flanges, each interface ensures the efficient operation of ship optical cables. Like the bridges and hubs of communication networks, they tightly connect optical cables to various communication devices, ensuring smooth and efficient signal transmission and conversion. In the future, with the development of intelligent, high – performance, and miniaturized technologies, ship optical cable interfaces will continuously improve in performance and design optimization, offering higher reliability, lower loss, and stronger anti – interference capabilities for ship communication systems. As ship communication technologies advance, ship optical cable interfaces will continue to play a vital role in marine communications, helping humanity better explore, utilize, and protect the oceans, making marine communications more efficient, reliable, and secure.
